Suction Accessories

Compatile with all DeRoyal® canisters, suction and fluid control products
Equips users for even the most complex set-up

INDICATIONS

CONTRAINDICATIONS

PRODUCT DETAILS

Product #	Description	Quantity
* WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
71-1123	7" Collection Sock, General	20/Cs
71-1122	10" Collection Sock, Orthopedic	20/Cs
71-2083*	Tubing, 3/16" x 18” Connector	100/Cs
71-2084*	Tubing, 1/4" x 6' Connector	50/Cs
71-1142	Tubing, 3/16" x 18” Funnel	100/Cs
71-2085*	Tubing, 1/4" x 20’ Connector	20/Cs
71-2082	Tubing, 3/16" x 6' Funnel	50/Cs
71-2063	Tubing, 3/16" x 36” Funnel	50/Cs
71-2086*	Tubing, 1/4" x 12' Connector	50/Cs
71-8100RNS	Tubing, Reinforced, Clear 5/16" x 100'	100/Roll

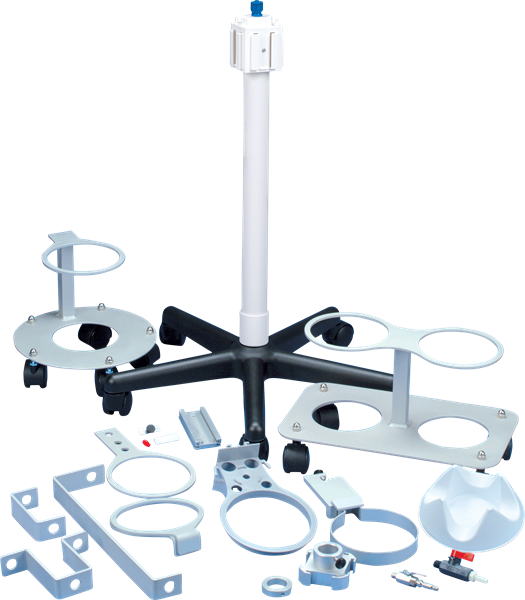

**Suction Hardware Guide**
Part #	Description	Use/Notes
71-1119*	Adapter, DISS, Plastic	Universal plastic regulator adapter (polycarbonate); both female and male fittings. DISS (Diameter-Indexed Safety System)
71-5014	Bracket, Flat Ring, 1200cc	Metal three-hole flat bracket for 800/1200cc rigid canisters. Typically used when hung from a wall regulator with polycarbonate DISS adapter (71-1119*)
71-2098	Bracket, Flat Ring 1500/2500cc	Metal three-hole flat bracket for 1500/2500cc rigid canisters. Typically used when hung from a wall regulator with polycarbonate DISS adapter (71-1119*)
71-5003	Bracket, Metal Ring - Narrow, 1200cc	800/1200cc ring bracket for standard metal hospital mount that has no bottom, edging or lip, 1.65” wide (typical use is on anesthesia carts)
71-2096	Bracket, Metal Ring - Narrow, 1500/2500cc	1500/2500cc ring bracket for standard metal hospital mount that has no bottom edging or lip, 1.65” wide (typical use is on anesthesia carts)
71-5008*	Bracket, Plastic Ring w/Valve 1200cc	Ring bracket for 800/1200cc rigid canisters to be used with plastic roll stand or patient floor wall mounts. Bracket includes on/off valve and blue vacuum hose
71-5009*	Bracket, Plastic Ring w/Valve 1500/2500cc	Ring bracket for 1500/2500cc rigid canisters to be used with plastic roll stand or patient floor wall mounts. Bracket includes on/off valve and blue vacuum hose
71-5010	Bracket, Plastic Ring, 1200cc	Plastic single canister ring bracket for 800/1200cc canisters, 2” wide, used with existing wall mounts or DeRoyal 71-1116
71-1117	Bracket, Plastic Ring, 1500/2500cc	Plastic single canister ring bracket for 1500/2500cc canisters, 2” wide, used with existing wall mounts or DeRoyal 71-1116
71-5018	Bracket, Plastic Ring (Grey), 1500/2500cc	1500/2500cc ring bracket w/holes for regulator mount
71-5012	Bracket, Pole Mount	Mount to attach canisters to either a vertical or horizontal pole or handle
71-5046	Manifold, 4 Port	Manifold tubing used with plastic roll stand (71-5045)
71-5047	Manifold, 2 Port	Manifold tubing used with plastic roll stand (71-5045)
71-1000BR*	Outer Shell Canister, Semi-Rigid, 1000cc, Bracket Mount	Outer shell for use with Semi-Rigid 1000cc liners, sliding bracket mount; fits into standard mounts on plastic roll stand or standard wall brackets
71-1000DSˆ	Outer Shell Canister, Semi-Rigid, 1000cc, DISS Mount	Outer shell for use with Semi-Rigid 1000cc liners, DISS adapter (polycarbonate) for mounting directly onto regulator
71-1500BR*	Outer Shell Canister, Semi-Rigid, 1500cc, Bracket Mount	Outer shell for use with Semi-Rigid 1500cc liners, sliding bracket mount; fits into standard mounts on plastic roll stand or standard wall brackets
71-1500DSˆ	Outer Shell Canister, Semi-Rigid, 1500cc, DISS Mount	Outer shell for use with Semi-Rigid 1500cc liners, DISS adapter (polycarbonate) for mounting directly onto regulator
71-3000BR*	Outer Shell Canister, Semi-Rigid, 3000cc, Bracket Mount	Outer shell for use with Semi-Rigid 3000cc liners, sliding bracket mount; fits into standard mounts on plastic roll stand or standard wall brackets
71-1000Tˆ	Bracket, T Mount	SafeLiner® Semi-Rigid Outer Shell “T Connector” Canister, 1000 cc
71-1500Tˆ	Bracket, T Mount	SafeLiner® Semi-Rigid Outer Shell “T Connector” Canister, 1500 cc
71-3000Tˆ	Bracket, T Mount	SafeLiner® Semi-Rigid Outer Shell “T Connector” Canister, 3000 cc
71-5017	Rail Mount	Universal for use Crystaline^® ECO Rigid Canisters, SafeLiner^® Semi-Rigid Liners
71-5019	Rail Mount, Hill-Rom, Hanging	Rail mount specific to Hill-Rom Headwalls to be used with Crystaline^® ECO Rigid Canisters, and SafeLiner^® Semi-Rigid Liners
71-5912*	Roll stand Conversion Kit, 1200cc	Kit required to convert Roll Stand (71-5045) to accommodate 800/1200cc rigid canisters; includes (4) ring brackets (71-5008); (1) manifold (71-2046)
71-5915*	Roll Stand Conversion Kit for 1500/2500cc	Kit required to convert Roll Stand (71-5045) to accommodate 1500/2500cc rigid canisters; includes (4) ring brackets (71-5009); (1) manifold (71-5046)
71-5045*	Roll stand 4-can, Plastic	Plastic four canister stand w/wheels. Must add adapter kits for the following: 800/1200cc - (71-5912); 1500/2500cc (71-5915); liners (71-5046); manifold + (4) outer shells of correct size
71-5045R*	Roll Stand, 4-can, Plastic w/Regulator Mount	Plastic four canister stand w/wheels. Includes DISS connection on top of roll stand to mount regulator. Must add adapter kits for the following: 800/1200cc - (71-5912); 1500/2500cc (71-5915); liners (71-5046); manifold + (4) outer shells of correct size
71-5045-8*	Roll Stand 8-can, Plastic	Plastic eight canister stand w/wheels. Must add adapter kits for the following: 800/1200cc - (71-5912); 1500/2500cc (71-5915); liners (71-5046); manifold + (4) outer shells of correct size
71-5045-8R*	Roll Stand, 8-can, Plastic w/Regulator Mount	Plastic eight canister stand w/wheels. Includes DISS connection on top of roll stand to mount regulator. Must add adapter kits for the following: 800/1200cc - (71-5912); 1500/2500cc (71-5915); liners (71-5046); manifold + (4) outer shells of correct size
71-5045R-S*	Roll Stand, 4-can, Plastic w/Regulator Mount, Short	Short, plastic four canister stand w/wheels. Includes DISS connection on top of roll stand to mount regulator. Must add adapter kits for the following: 800/1200cc - (71-5912); 1500/2500cc (71-5915); liners (71-5046); manifold + (4) outer shells of correct size
71-5016	Roll Stand, Floor Kick, Double, Universal	Metal double canister stand, w/wheels for Crystaline^® ECO Rigid Canisters. Must add appropriate ring bracket for rigid canisters or outer shell for liners
71-5013	Wall Mount, Double, Universal, Metal	Metal double wall mount. Can be used to hang 2 canisters or liners from one standard hospital wall mount. Used in combination with the following plastic ring brackets: 71-1117, 71-5008, 71-5009, 71-5010, 71-1000BR, 71-1500BR, 71-3000BR
71-1116	Wall Mount, Plastic	Plastic wall mount used in combination with plastic ring brackets, SafeLiner^® Bracket Outer Shells
71-5020	Wall Plate, Metal	Metal wall mount used in combination with plastic ring brackets, SafeLiner^® Bracket Outer Shells
*WARNING: This product can expose you to chemicals including 3-Methylcholanthrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. ^WARNING - This product can expose you to chemicals including Dichloromethane (Methylene chloride) and 3-Methylcholanthrene which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
